Characteristics of TYPE D rubber fender:
1. Moderate reaction force and energy absorption;
2, light weight, installation and maintenance;
3, the bottom width is small, suitable for frame dock
Several common characteristics of rubber fender:
1) Cylindrical rubber fender:
Features low reaction force, small surface pressure, reasonable energy absorption; When berthing, it has strong adaptability to roll and pitch of ship and is not affected by the size of ship. It is widely used and easy to install and maintain, especially suitable for old-fashioned wharf.

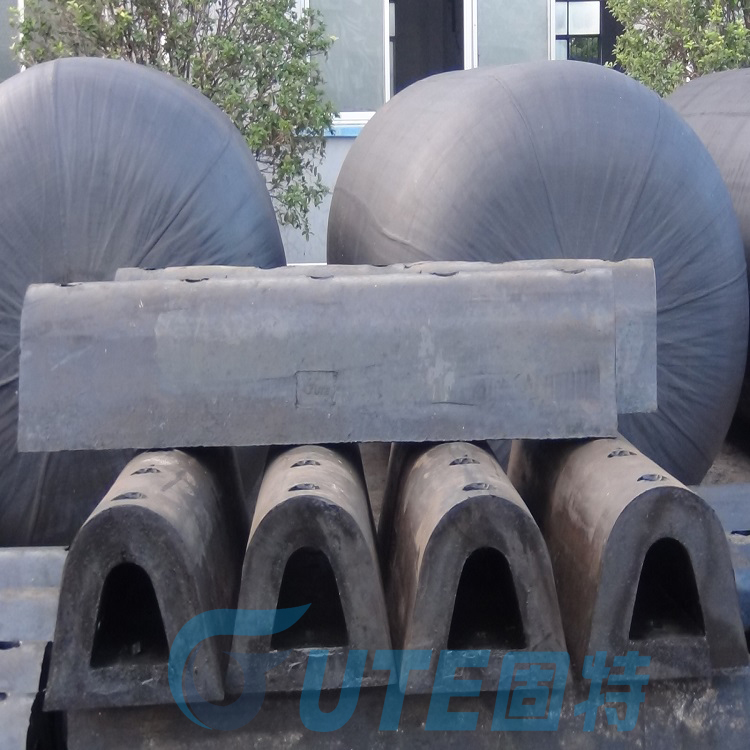

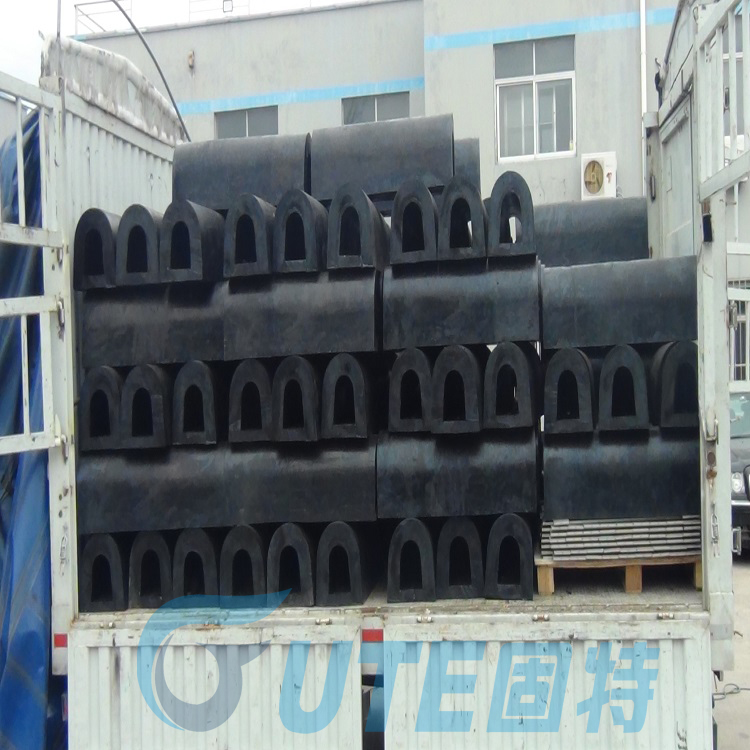

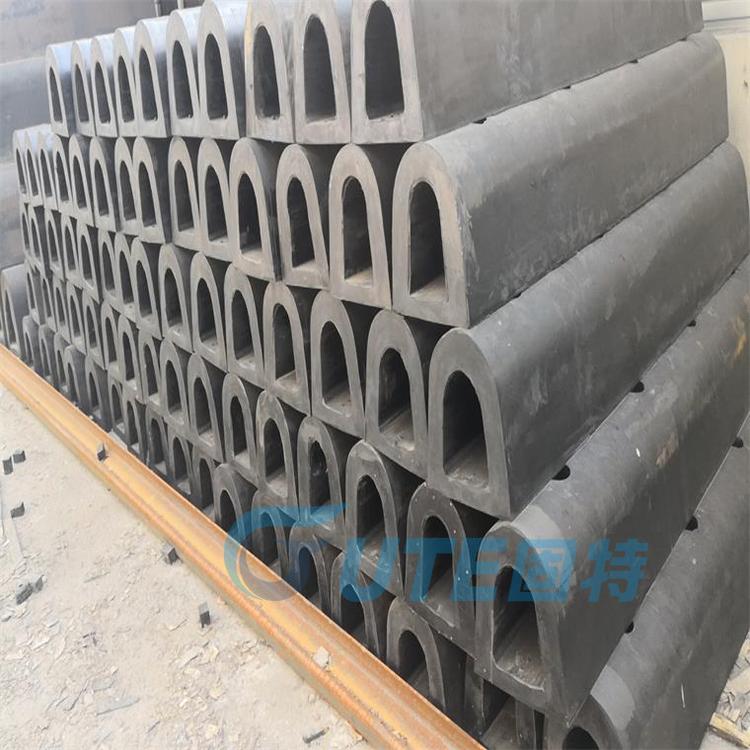

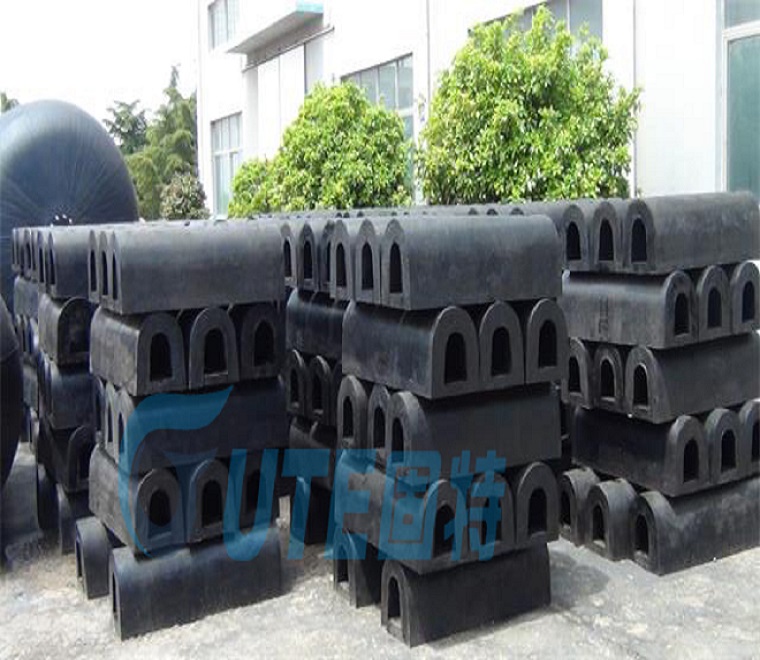

2) Semi-circular (D) rubber fender:
Features moderate reaction force, higher energy absorption than the cylinder; Installation is more convenient to work; Because the bottom width size is small, especially suitable for frame wharf and ship side installation.
3) DO rubber fender:
Features higher energy absorption of reaction force than type D fender; The installation strength and service life are greatly improved compared with D fender. Suitable for frame wharf.
Arch (V) rubber fender: moderate reaction, high energy absorption; Installation firm, convenient;
Suitable for all kinds of wharfs.
4) DA rubber fender:
Features: High energy absorption and low reaction force; Products have higher stress dispersion, long service life; The front end is provided with a guard plate to reduce the surface pressure; Complete specifications and various installation methods; Easy to replace.
5) Drum rubber fender:
Features low reaction force, large energy absorption; Surface pressure below 25 tons/m 2; The mechanical properties of inclined compression decrease little; ∏ type rubber fender: features low reaction force, large energy absorption; Easy to install; Generally suitable for large and medium-sized docks.
